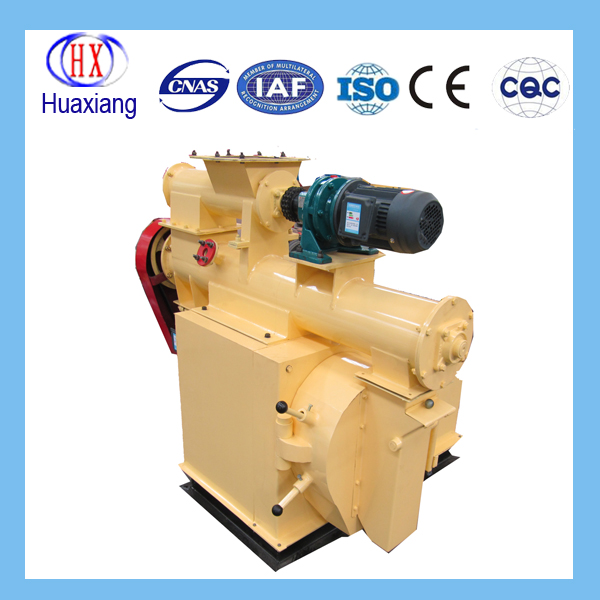

HKJ series Pellet Machine
Brief:
1.Specially for making feed pellets.
2.High Capacity.
3.Reasonable Design.
4.CE Certification.
Production Information:
It is used for pellet manufacture of materials such as livestock and poultry feed, aquatic feed, and grass powder, etc.
Working Principle:
The raw material is putted into the machine through feeding, under the function of centrifugal force, the raw material will be throw to the inner wall of die, form a ring shape material uniformly, layer and layer, the ring shape material will taken into the touching area of die and roller, after the forced extruding between die and roller, the ring shape material will be formed a columned pellets, and then, will be out from the hole within the die, the cutting knife who fixed in the chest will cut the pellets according clients adjusting.
Technical Data:
|
Model |
Power(KW) |
Capacity(T/h) |
Weight(KG) |
Size(mm) |
|
HKJ200 |
15 |
0.4-0.6 |
430 |
1250*1350*1320 |
|
HKJ250 |
22 |
0.8-1 |
750 |
1300*1450*2000 |
|
HKJ300 |
30 |
1.5-2 |
925 |
1600*1550*970 |
|
HKJ320 |
37 |
2-3 |
1470 |
2070*1330*2200 |
|
HKJ350 |
55 |
3-5 |
2030 |
2280*1200*2300 |
|
HKJ420 |
90 |
5-8 |
3200 |
2350*1300*2450 |
