Mixer Machine

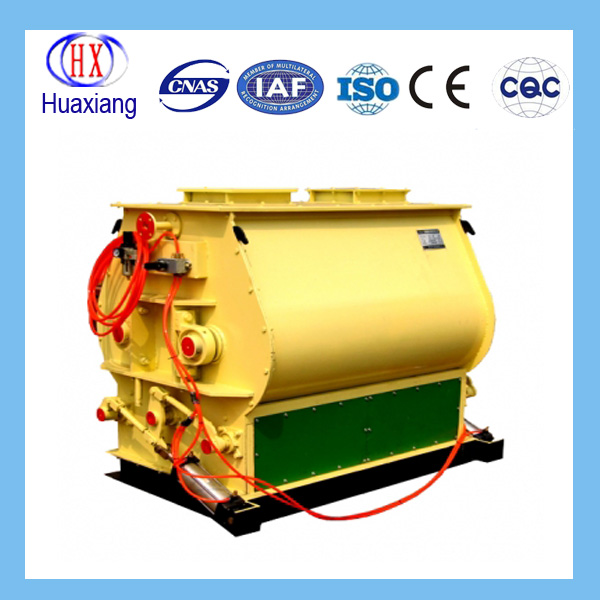

SSHJ Series Double Shaft Twin Screw Mixer Machine
Brief:
1.Specially for making feed pellets.
2.High Capacity.
3.Reasonable Design.
4.CE Certification.
Production Information:
Mix raw material uniformly. It is suitable for different materials blending to make sure the moisture content.
Advantage:
1.Low speed running, high effective mixing, downy working, a variety of liquid ca be added.
2.The mixing time is short, 2-5min/batch, the mixing uniformity is high, CV<5%.
3.Pneumatic door structure, not material leakage, discharges material rapidly, no residue.
4.Application Scope: industries such as organic fertilizer, feedstuff, energy and environmental protection, chemical industry, and medicine, etc.
Technical Data:
|
Model |
Output(m3/batch) |
Power(KW) |
Volume(L) |
Evendegree(CV<%) |
Time(sec) |
Weight(Ton) |
Size(mm) |
|
SSHJ100 |
0.2 |
3 |
0.2 |
<5% |
40-90 |
0.62 |
1500*1200*1200 |
|
SSHJ250 |
0.5 |
5.5 |
0.5 |
<5% |
40-90 |
1 |
1720*1500*1350 |
|
SSHJ500 |
1 |
11 |
1 |
<5% |
40-90 |
1.7 |
2360*1900*2050 |
|
SSHJ1000 |
2 |
22 |
2 |
<5% |
40-90 |
2.8 |
2700*2100*2400 |
|
SSHJ2000 |
4 |
30 |
4 |
<5% |
40-90 |
4.6 |
2950*2500*2500 |
|
SSHJ3000 |
6 |
37 |
6 |
<5% |
40-90 |
6.5 |
3500*2800*2600 |
|
SSHJ5000 |
10 |
45 |
10 |
<5% |
40-90 |
9.8 |
4500*3200*2800 |
