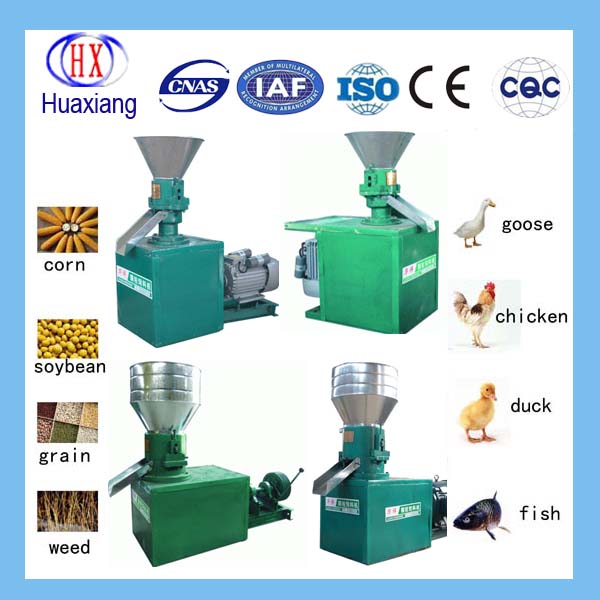

SKJ series Pellet Machine:
Brief:
1.Specially for making feed pellets.
2.High Capacity.
3.Reasonable Design.
4.CE Certification.
Production Information:
1.Materials can be dry in and out, there is no need to dry offer it.(moisture content is not less than 13%).
2.Reducer casing is adopted in this machinery which is a granulator moved by diesel and electricity, and the transmission mode of this machine is through Cardon Drive, belt drive and belt cluch. It is a great choice for medium and small livestock farms due to its low consuption, high capacity, as well as easy operation.
Advantage:
1.Our machine have features of simple sturcture, wide application, small occipied area, low noise.
2.Raw material can be directly pressed into pellets without adding any liquid binder(except the special situation). And the moisture content of pellets is very low, easy for storage.
Technical Data:
|
Model |
Power(KW) |
Capacity(kg/h) |
Size(mm) |
Weight(kg) |
Diameter of Die(mm) |
|
SKJ120 |
2.2 |
80-100 |
600*450*900 |
120 |
120 |
|
SKJ150 |
5.5 |
150-200 |
1150*410*950 |
169 |
150 |
|
SKJ200 |
7.5-11 |
200-300 |
1150*410*950 |
210 |
200 |
|
SKJ250 |
15 |
300-500 |
1400*500*1270 |
318 |
250 |
|
SKJ320 |
22 |
700-1200 |
1620*740*1125 |
556 |
320 |
